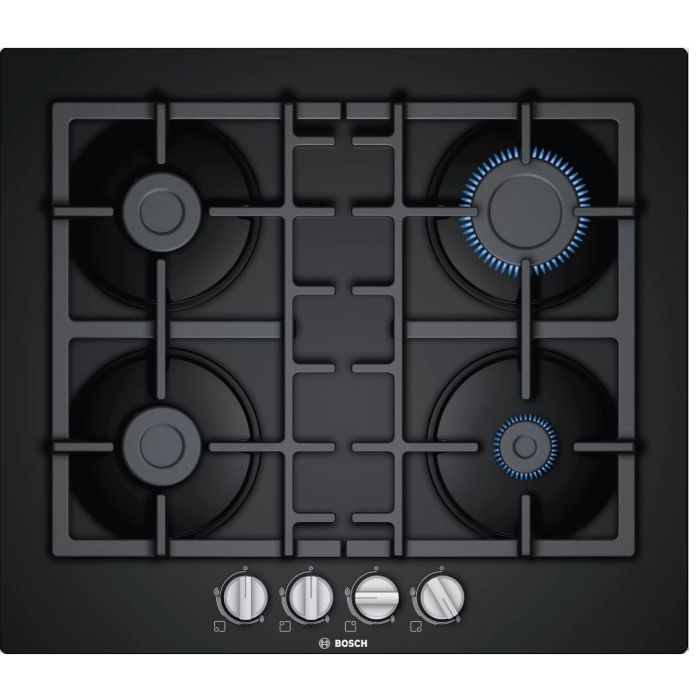

Bosch PNP6B6B90 Black Glass 60Cm Gas On Glass Hob
- ColourBlack Glass
- Manufacturer Guarantee2 years
- EAN4242005134311
PNP6B6B90 Series 4 Gas hob 60 cm Black
Technical Overview
Cooktop type Gas cooktop
Number of cooking zones 4
Wok burner No
Gas type Nat gas H/E/(L) 20 (25) mbar No
Alternative gas type Liquid gas G30,31 28-30/37mbar
Smart Appliance No
Highlights
Cook with renewable biomethane gas.
You can cook more sustainably with biomethane gas. It’s a renewable natural gas that’s kinder to the planet than fossil natural gas – and delivered to your home using the same grid. Now your healthy cooking can be greener too.
● Semi-continuous cast-iron pan support: for high stability and easy cleaning.
● Biomethane-ready: your gas hob can also be powered with renewable biomethane gas.
● Ergonomic control knobs with raised center for precise adjustments.
● Surface colour: elegant black tempered-glass design.
Specification | ||
---|---|---|
- General | ||
Cooktop type | Gas cooktop | |
Self-sufficient cooker control | Self-sufficient gas hobs | |
Width | 60 cm | |
Number of cooking zones | 4 | |
Power of the heating elements | 1 x 1.0 KW, 1 x 3.0 KW, 2 x 1.75 KW | |
Basic surface material | Tempered glass | |
Frame type | Flush fitting | |
Main colour of product | Black | |
Energy efficiency of hob | 57.0 % | |
- Size and weight | ||
Dimensions | 56 x 590 x 520 mm | |
Minimum height for installation | 480 mm | |
Maximum height for installation | 492 mm | |
Minimum width for installation | 560 mm | |
Maximum width for installation | 562 mm | |
Depth for installation | 45 mm | |
- Technical specifications | ||
Gas connection rating | 7,500 W | |
Voltage | 220-240 V | |
Length of electrical supply cord | 100 cm | |
Plug type | no plug (electrical connection by electrician) | |
Gas connection | rear, right | |
Gas type | Nat gas H/E/(L) 20 (25) mbar | |
Alternative gas type | Liquid gas G30,31 28-30/37mbar | |
- Comfort | ||
Type of control setting and signalling devices | sword knobs | |
Timer | No | |
FlameSelect | No | |
Wok burner | No | |
dishwasher safe pan support | No | |
Ignition system | Yes | |
- Connectivity | ||
Smart Appliance | No | |
Cooktop-based hood control | No | |
- Safety | ||
Residual heat indicator | without | |
Safety device | Flame failure safety device | |
Type of safety device for gas | Electromagnetic for each burner | |
- Design | ||
Tempered glass surface, Black | ||
frameless design: install the hob either flush or slightly raised on the worktop | ||
Cast iron pan supports with rubber feet | ||
- Usage convenience | ||

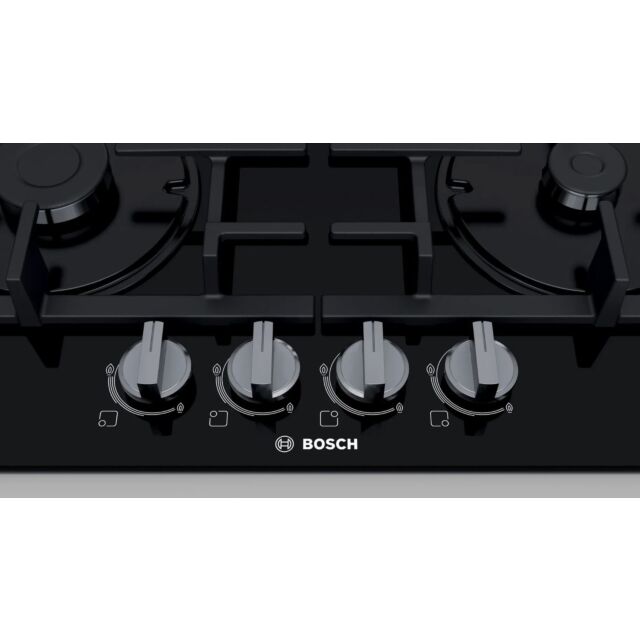

Design co-ordinated control dials: easily access dials in front with strong grip for effortless turning. | ||
Ignition via control dials: just push and turn the dials to ignite the flame. | ||
- Burners and power | ||
4 gas burners: | ||
Left front: standard burner up to 1.75 KW (depending on gas type) | ||
Left rear: Standard burner up to 1.75 KW (depending on gas type) | ||
Right rear: high-speed burner up to 3 KW (depending on gas type) | ||
Right front: economy burner up to 1 KW (depending on gas type) | ||
- Safety | ||
Flame failure safety device: prevents unwanted gas flow when flame goes out. | ||
- Installation (gas types + measurements) | ||
Usable for: Nat gas L/LL G25/20mbar(DE) | ||
NG H/E 20mbar, E+ 20/25mbar Natural gas H 25 mbar (HU) Natural gas L 25 mbar (NL) Liquid gas G30,31 28-30/37mbar Liquid gas G30 37 mbar (PL) Liquid gas 50 mbar | ||
Pre-set for natural gas | ||
Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service. | ||
Dimensions of the product (HxWxD mm): | 56 x 590 x 520 | |
Required niche size for installation (HxWxD mm) : | 45 x 560 x (480 - 492) | |
Min. worktop thickness: | 30 mm | |
Power cord: | 1 m | |
Connected load: | 7.5 KW |
